ACW24 - Suit Vermeer SC60/SC70/SC552/SC852/SC1152

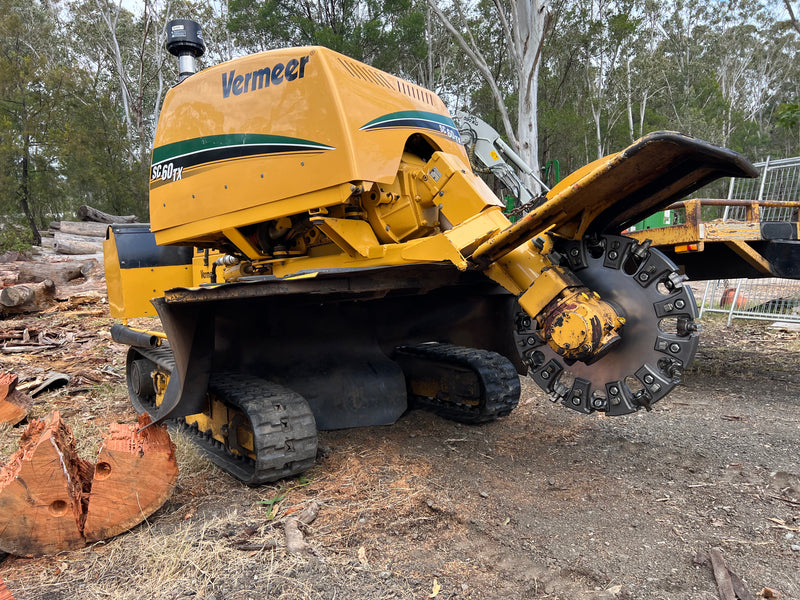

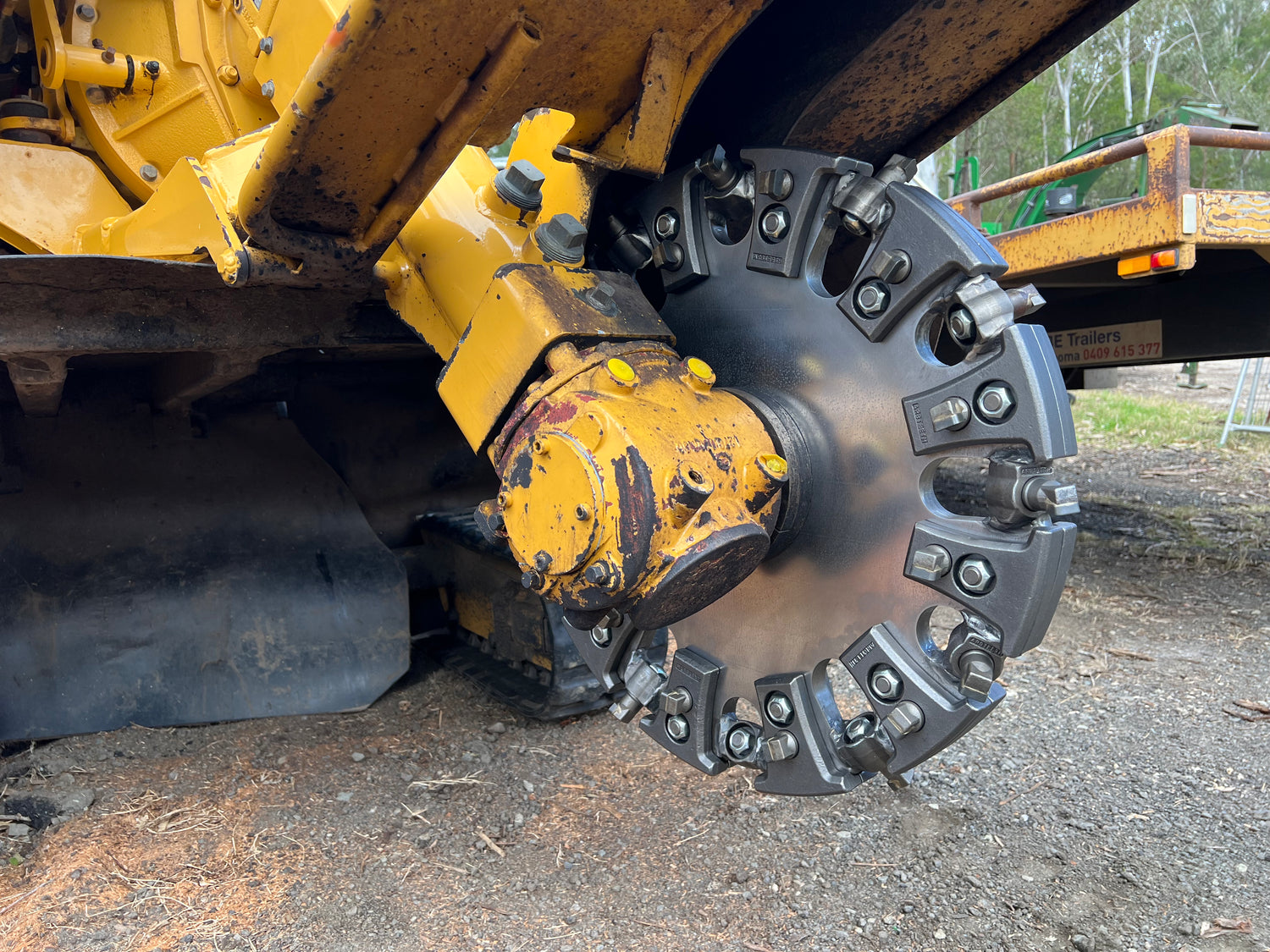

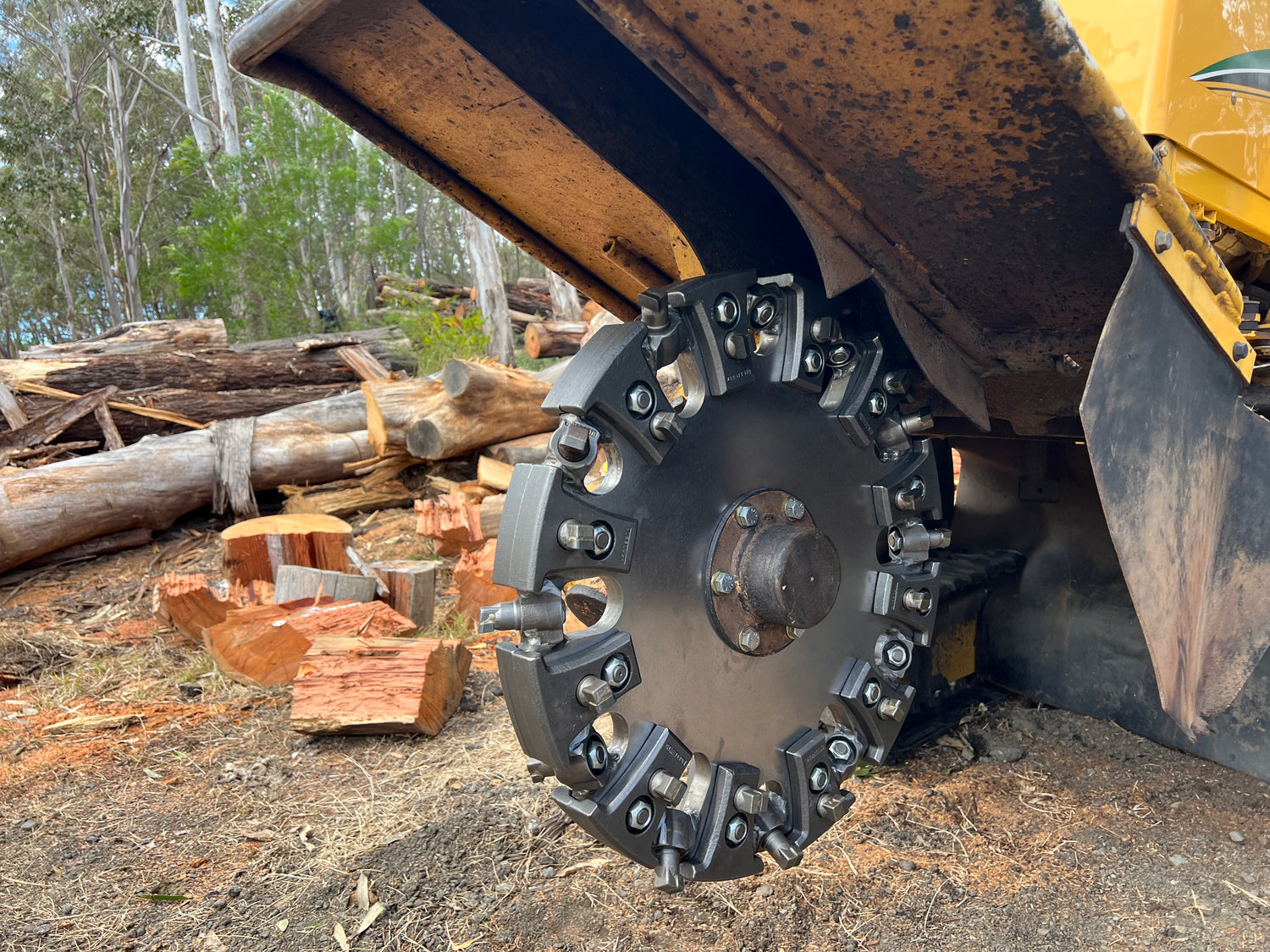

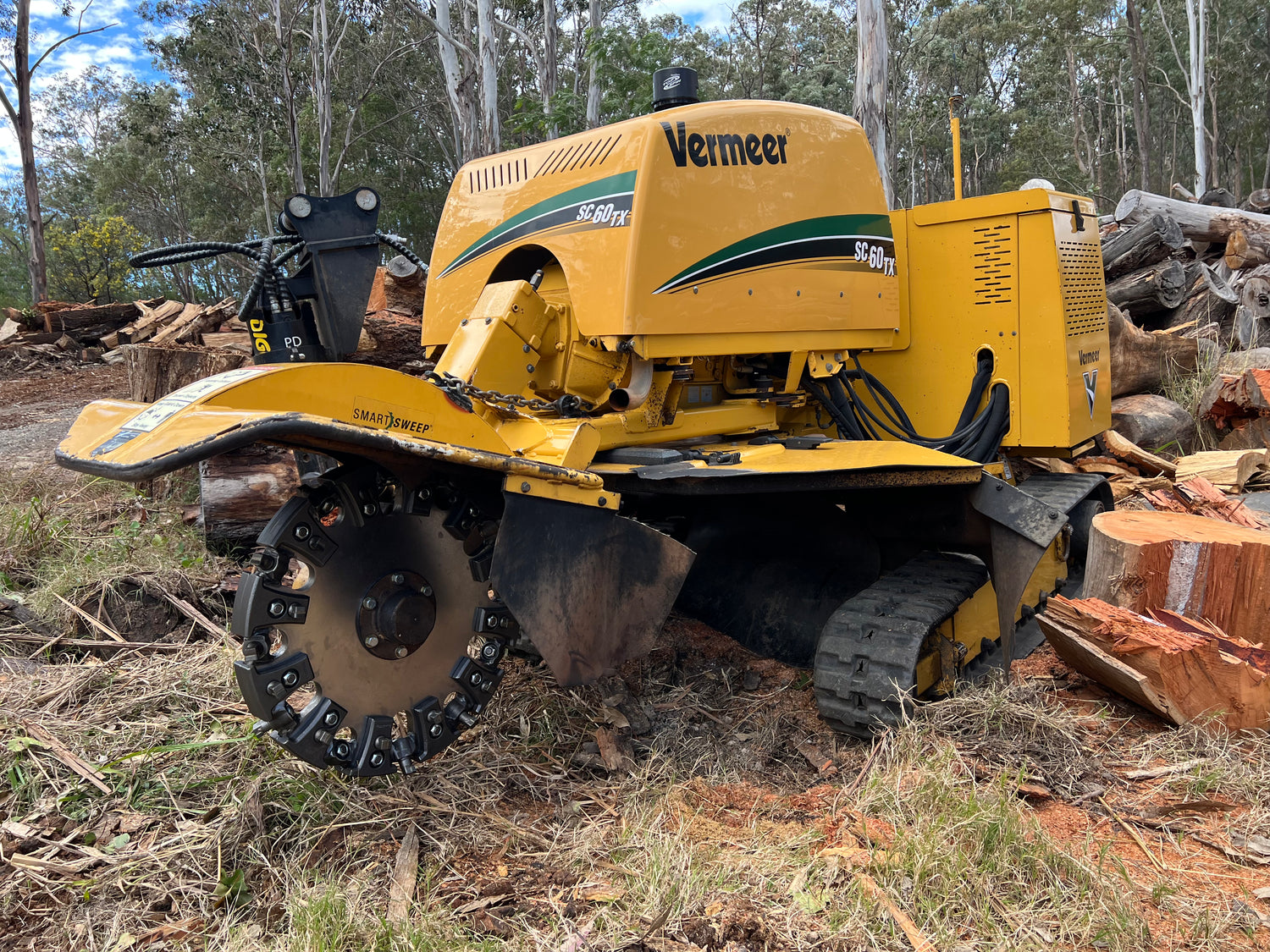

Arbteeth Cutter Wheel (ACW) – Suits Vermeer SC60/SC70/SC552/SC852/SC1152

***Vermeer SC60 and SC552 use the 6 bolt pattern***

***Vermeer SC70, SC852, SC1152 use the 8 bolt pattern***

YOU CAN READ MORE ABOUT THESE PRODUCTS HERE

Comes ready to grind – Includes the wheel, all teeth, wear pads, and new mounting bolts.

23.5mm thick Australian Bisalloy 80 wheel, forged 8360 weld-in pockets, and forged 42CrMo wear pads.

Features unique wear pads that protect the side and leading edge of the cutter wheel for maximum life and durability.

Replaceable Wear Pads
Uses four types of wear pads on the edge of the wheel – ACW24A, ACW24B, ACW24C and ACW24D. The 24A and 24B wear pads have a user-friendly locator pins that lines up with a small hole in the wheel to prevent incorrect placement. The wear pads are also reversible (can be swapped from the left side of the wheel to the right, and vice versa) to extend their life.

Only 12 lead teeth, 24 side teeth.
That’s all that’s needed. You will likely replace the lead teeth 2-3 times before needing to replace the side cutting teeth.

Stronger Teeth
Uses our range of aftermarket Sandvik-style teeth, which are widely available and commonly used in Red Roo and Carlton stump grinders. In our opinion, these are the strongest teeth available for commercial stump grinding.

No Pocket Bolts
Just imagine a life where you never have to worry about breaking a pocket bolt onsite or having to cut it out when the pockets need replacing!

Smoother Grinding. Better Chip Containment. Less Maintenance and Downtime.

CURRENTLY BUILT TO ORDER – 3ish WEEK TURNAROUND
NO FREE SHIPPING ON CUTTER WHEELS – You will be contacted and supplied a quote, typically anywhere between $50–$350 via TNT/FedEx.
